If the shift cable is bad it can cause the switch to over-activate and stall the engine when you shift. Describe or illustrate adjusting the shift cables 2 on a merc 57l v8 engine with an alpha one gen one drive.
Mercruiser Alpha One Shift Cable Diagram.
How to change shift cable on mercruiser alpha one. About Press Copyright Contact us Creators Advertise Developers Terms Privacy Policy Safety How YouTube works Test new features Press Copyright Contact us Creators. Mercruiser Alpha One Shift Cable replacement steps 1. For Mercruiser 25 30 37 and 37LX Alpha One.
For more videos click link. This video shows how to remove or install the shift cable without buying the shift cable tool. Follow your service manual for complete instructions this onl.
Remove the dash cable from the shift plate. Adjust the stud in the slot to the bottom of the slot. Push the drive cable inwards while someone locks the prop.
It is VERY important to make sure the prop is fully locked. Measure the drive cable so you have a 6 distance between the hole at the end and the brass barrel. Alpha one Shifting cable adjustment this is what I would do.
Start all over with adjustment procedure. Adjust lower shift cable exactly as procedure shows. Pay attention particularly to the part about the slot on the lower cable adjustment.
Start with pin at bottom of slot. Finish adjustment procedure for both lower shift cable and remote cable. How To Adjust The Shift On The Mercruiser Alpha One Fits units that install from the aft end of bell housing.
Mercruiser alpha one shift cable diagram. Mercruiser shift cable adjustment and install help use when installing and view mercruiser tech drawings. The shift plate mechanism will then move the drive shift cable.
Mercruiser Alpha One Shift Cable Diagram. Mercruiser shift cable adjustment and install help use when installing and view Mercruiser tech drawings. MercruiserMRAlpha 1 shift cable kit OEM A03 First examine the condition of the connections on the unit.
You will need to replace this cable a new one PN OEM A03. How to adjust your mercruisier shift cable. Boat sticks In forward or reverse.
Boat stuck in forward boat stuck in reverse. Boat clicks when you shift you n. To replace the shift cable you should be armed with a workshop manual and a replacement shift cable kitall available from those friendly Watercraft Services Aquapart people CALL UK 4401872 863777 FOR FRIENDLY ADVICE.
Pull on the shift cable guide to remove any slack from the cable. Remove the locknut holding the adjustment barrel in place. Remove the clevis pin with a set of pliers and disconnect the brass adjustment barrel from the post.
Adjust the barrel by rotating it until youve removed the slack. If no engagement or it can be manually popped out of reverse at the prop then you adjust this by loosening the 716 hex STUD under the cable endnot the nut on top of the cable that the end of the short shift cable mounts to. There is a slot that this stud is allowed to move.
Adjust the stud in the direction that will PULL the cable end. Describe or illustrate adjusting the shift cables 2 on a merc 57l v8 engine with an alpha one gen one drive. - Answered by a verified Marine Mechanic.
The best source for Mercruiser OEM parts marine engines boat engine parts accessories boating supplies tools aquatic sporting goods. Pre-Alpha Alpha One and Alpha Gen II engines use a Shift Interrupter Switch. This switch allows the drive to shift back into neutral with less effort.
If the switch is defective or disconnected it will be very difficult to get neutral. If the shift cable is bad it can cause the switch to over-activate and stall the engine when you shift. Pull gently on the plastic cover over the shift cable near the shift lever stud to remove any slack left in the cable.
Remove the clevis pin and brass barrel from the shift plate and rotate the barrel until the excess cable has been removed. The clevis pin hole will be aligned with the end of the shift cable when the proper adjustment has been made. My Alpha shift cable is starting its third season and I checked its movement without anything attached to either end.
It was about 50 degrees outside but I thought it was a bit stiff I should have made a mental note to myself when I put the new one in. I decided to pull the cable out from the outer sheath and I wiped it down and put it back in. Almost half the friction was reduced.
Remove shift cable attaching hardware. 50308 a c b a-Cotter Pin b-Clevis Pin And Cotter Pin c-Washer And Locknut 2. Place remote control shift lever in NEUTRAL position.
Temporarily install clevis pin through remote control shift cable end guide shift assist assembly end and into hole in shift lever. Then adjust brass barrel so that hole in barrel. Recently replaced a shift cable on a1988 350 mercruiser alpha 1 drive.
Shift interrupter works fine in foreward but shuts off the engine in reverse. Could you advise the proper sequence to adjust. Changing the shift belows on a mercruiser Alpha one.
I was warned about shift cable wrapping that it should be removed prior to taking shift cable housing from inside of back of boat. Is the cable wrapping reusable. The cable is in good shape just the bellows needs replacing.
How does a Mercruiser shift interrupter work. Pre-Alpha Alpha One and Alpha Gen II engines use a Shift Interrupter Switch. This switch allows the drive to shift back into neutral with less effort.
If the shift cable is bad it can cause the switch to over-activate and stall the engine when you shift. Click to see full answer. Pop off the shift levers plastic housing with a flathead screwdriver.

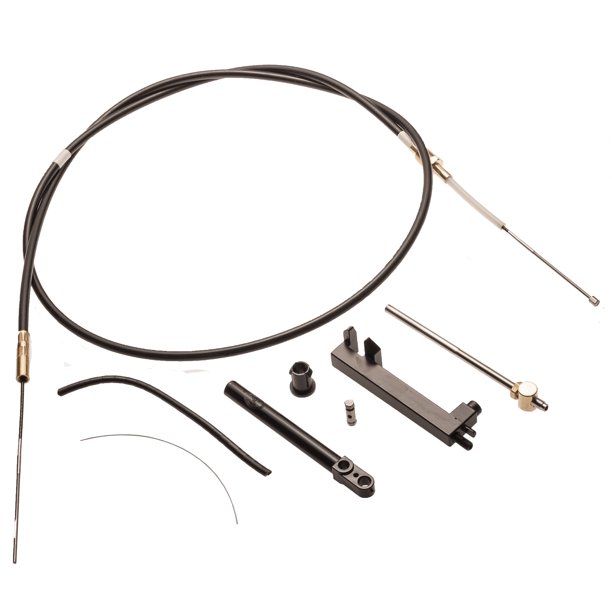

Trace the shift cable from the shift lever to the propeller on the MerCruiser. A shift arm the lower shift cable that attaches to the shift arm the propeller some metal studs and slots for the cable to rest in when shifting from forward to reverse now are exposed. New lower shift cable kit for Mercruiser outdrives.
MC-I MR Alpha 1978 newer Alpha One Gen I 1983-1990 Alpha One Gen II 1991-2016 Kit contains both inner and outer cable anchors and cable ends. Cross reference MercruiserQuicksilver 865436A02 19543A10 19543A8. New 2 from 5500.
